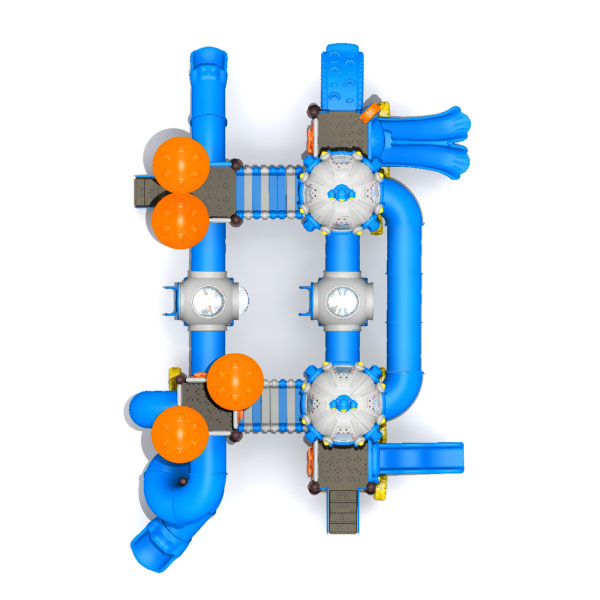

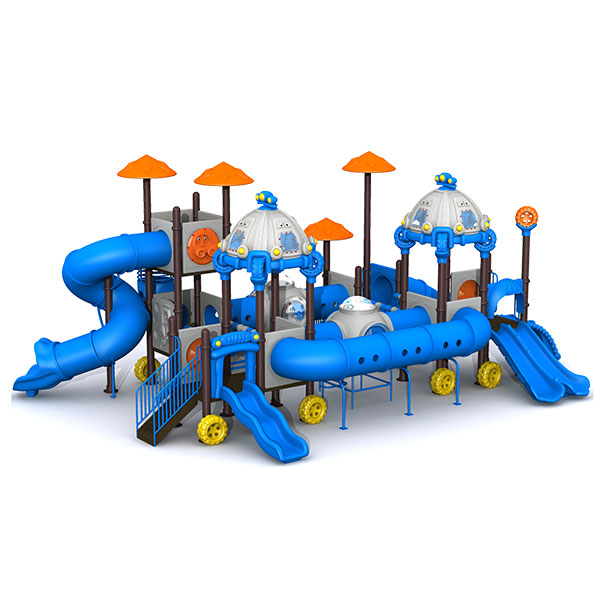

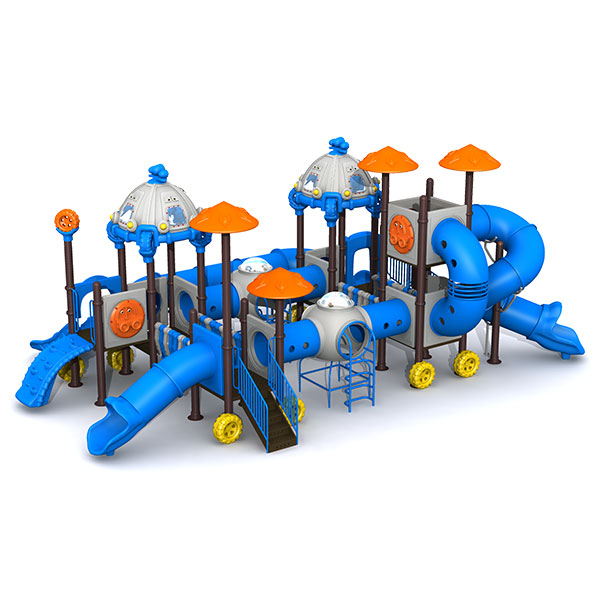

Car Series TQ-QC103

1.

1).The components on the system are CE certified EN71-1,71-2,71-3 certified according.

2).The factory is ISO9001:2008 certified,the fastening system is trial assembled in workshop to guarantee accuracy.

3).The open bedway slides are one-piece rotationally molded with no undesirable gaps or seams.

4).The ladders,handrails,steps,and climbers are all-welded one-piece to reduce installation time and maintenance concerns.

5).Diameter:114mm

6).Wall thickness:2.0mm steel posts cleaned by sand-blasting,then coated with phosphatesolution,and then finished with slectro-static powder coating.

7).Zinc/steel alloy mounting clamps with concealed fixing bolts,finished with electro-static powder coating.

8).Steel rails and tubes cleaned by sand-blasting,then coated with electro-static powder coating.

9).The decks and steps are one-piece welded-steel and dipped in a slip-resistant PVC coating.

10).Rotor moulded UV-resistant PE roofs,playing panels and slides(LLDPE).

11).Stainless steel fixing accessories

12).Player age :3-12 years old

2.Product specification :

3.The details of installation drawing:

We have installation drawings for each of our products !

 4. The details of products :

5. Producing line :

6. The feedback from customer :

7. The Exhibition of Company:

8.The profile of company :

Zhejiang Tianqi Rotational Mould Co., Ltd. is located in Linhai, covering a land area of 10,000 square meters. We have more than 100 staff members, and have one batch of designers with many years of professional experience. We have advanced technology and managerial talents, integrating design, development, production, and sale of  outdoor  play equipment, indoor softy plauground , children plastic toy s,  fitness equipment

We have also developed some special types of outdoor amusement equipment according to the special requirements and specifications of our customers.

All kinds of our outdoor play equipments are applied in schools, kindergartens, gardens, villas, parks, companies, residential areas, amusement parks, children's halls, shopping centers, and super markets.etc.

We can meet these certificate :

9. FAQ

1. Q: Type of steel pipes ?

    A: Galvanized Steel pipes.

2. Q: Thickness of steel ?

    A: 2mm

3. Q: Diameter of pipes ?

    A: Posts/Columns Diameter: 114mm;Handrails, guardrails Diameter: 25mm/32mm.

4. Q: Type of fixation on the ground ?

    A: 3 kinds of fixation on the ground available:

    1). With aluminum plates with bolts, fastening on solid ground surface with screws;

    2). The posts are made directly 30cm longer, and you need to bury the end of post under ground.

3). Posts/Columns made both with 30cm longer and with Plates and screw.

Please leave an inquiry for further contact.
